#pfg-612 okamoto 6" x 12" hand feed surface grinder '92

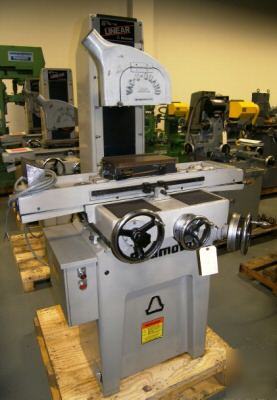

Preowned 6" x 12" OKAMOTO Hand Feed Surface Grinder, Model: Linear 6.12/14 (PFG-612) S/N 2535U (New 1992)
Maximum width and length ground
Maximum distance, top of table to centerline of
Maximum work height under 8" diameter wheel to top
Longitudinal travel of table per revolution of hand-
Cross travel of saddle per revolution of handwheel
Cross feed handwheel vernier reads to
Vertical travel of wheelhead wheel per revolution of
Vertical feed handwheel reads to
8" diameter x 1-1/4" bore x 3/4"
wide (maximum capacity 1")
Carriage and saddle movement on two 45 degree vee's
Table riding on linear ball bearings between (3) vee's & (1) flat way
Zero setting slip rings on cross and vertical axes
6" x 12" KANETSU permanent magnetic chuck
Vac-U-Guard wheel guard with dust suction outlet
Manually operated one shot lubrication system to screws and all ways including column
2 H.P. 3/60/230-460 volt high precision cartridge-type spindle drive motor and
Machine is wired for 460 volt operation.
59" L-R x 46-1/2" F-B x 71" High
(F.O.B. Truck, Hauppauge - Long Island, NY)
